High Performance Carbon Molecular Sieve CMS-260 For PSA Nitrogen Generator

PRODUCTS DESCRIPTION

Carbon molecular sieve is a new absorbing material with the ability of pressure swing adsorption under normal temperature and finally getting high-purity nitrogen. The research and production of carbon molecular sieve must be standardized and scientific. Raw material test, production control, and finished product test both require the rigorous regulation, so we can make the high capacity product. “Biochem” carbon molecular sieve has the advantages of high nitrogen production, low energy cost, high solidity, and long duration.
At present, carbon molecular sieve is the first choice of pressure conversion adsorption (P.S.A) air separation nitrogen rich adsorbent in engineering. This nitrogen has a wide range of applications in chemical industry, oil and gas industry, electronic industry, food industry, coal industry, pharmaceutical industry, cable industry, metal heat treatment, transportation, storage and other fields.

ProductCarbon molecular
sieves
ModelCMS-260
Carbon molecular sieve (0.28-0.38nm)
Capacity(0.8Mpa,NM3/hr)
Particles diameter(mm) 1.1-1.2Particle length(mm)2-3
Bulk density(g/L) 670-680
Crushing
strength(N/pcs)
≥60-100
Dust level(mg/g)≤0.1
Adsorption pressure(mpa)0.7-0.8Optimal detection
temperature
20℃
Nitrogen
concentration (%)
99Carbon
yield(L/h.kg)
310
AnalyticalNitrogen
concentration (%)
99.5Carbon
yield(L/h.kg)
260
Nitrogen
concentration (%)
99.9Carbon
yield(L/h.kg)
190
Nitrogen
concentration (%)
99.99Carbon
yield(L/h.kg)
110
Nitrogen
concentration (%)
99.999Carbon
yield(L/h.kg)
90
Air / nitrogen99/2.6
99.5/2.8
99.9/3.7
99.99/4.9
99.999/6.5
Adsorption time45-50s

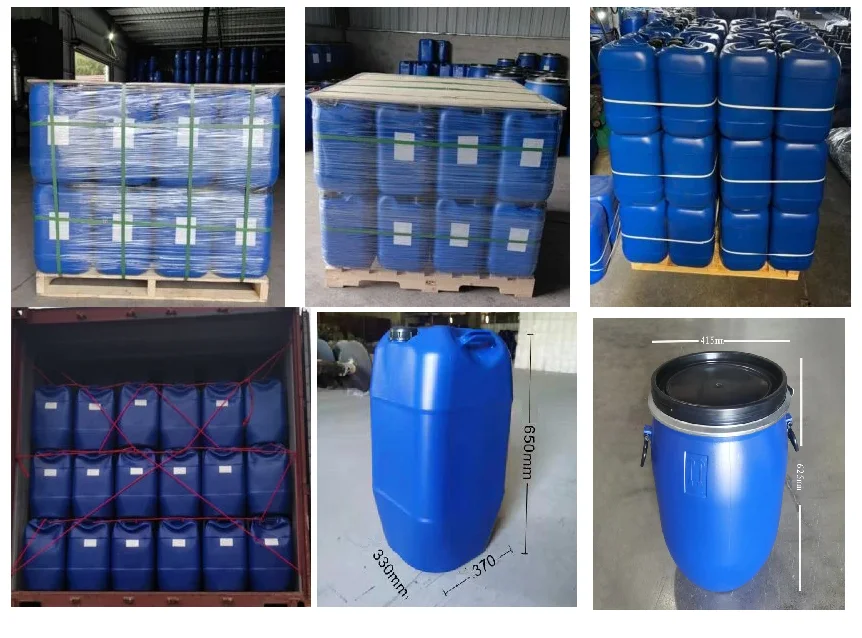

Shipping & Packing

Packing in 20KG or 40KG plastic drum, and customized
